Continuous Fiber Laser Power: The Hidden Force in High-Precision Tech

In high-precision fields like laser cutting, fiber optic communications, and medical surgery, behind every stable laser beam lies an unsung hero—the continuous fiber laser power supply.

What is a Continuous Fiber Laser Power Supply?

A continuous fiber laser power supply is a specialized system that delivers ultra-stable electrical power to CW (Continuous Wave) fiber lasers. Its core function is converting input power (AC/DC) into high-precision, ripple-free output to ensure uninterrupted laser operation.

How It Works

AC/DC Conversion & Filtering: Rectifies AC (e.g., 220V) to clean DC.

Power Conditioning: Adjusts voltage/current via DC-DC converters to match laser pump requirements.

Real-Time Feedback Control: Monitors laser output (e.g., power) and dynamically adjusts supply.

Pump Drive: Precisely energizes laser diodes (e.g., Yb³⁺-doped fiber pumps) for continuous lasing.

Why Choose LZY Laser?

● Global Trust, Cutting-Edge Tech

LZY Laser Tech (Stock Code: 833611) boasts 20+ years in laser power innovation. Our CE/FDA/UL-certified products serve 30+ countries across industries like industrial manufacturing, medical aesthetics, and R&D.

● International Competitiveness

Performance at Competitive Cost: Matches global brands’ specs with cost efficiency.

Worldwide Support: Rapid technical response across Asia, Europe, and beyond.

R&D Focus: Post-IPO investments enabled a full 500W–6kW fiber laser power supply lineup, accelerating clients’ optical system development.

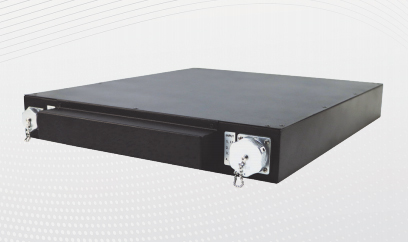

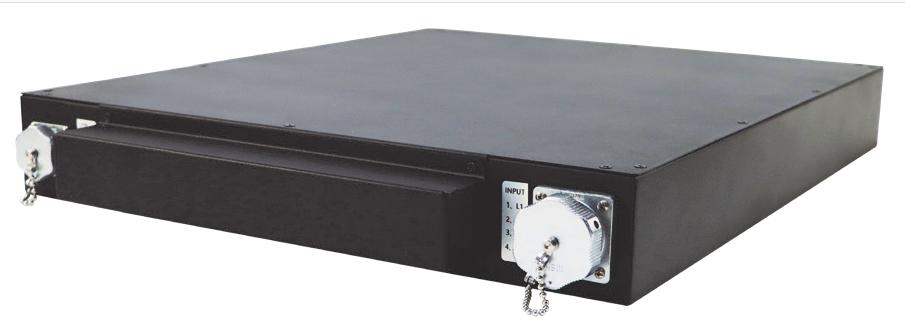

Flagship Product: Optical power 6kW continuous fiber laser power module

High Efficiency Ultra-Fast Response Smart Protection Remote Control

4×50A constant-current outputs, individually adjustable (0–10kHz pulse). 10μs rise time, zero overshoot for precision. Hardware interlocks for over-power/current/temperature. IP55 rated. Real-time monitoring (power, temp, flow) via PC software.

Product Features

·Input range: AC342V-456V,50/60Hz.

·4*50A constant current output, each output can be enabled and the output current can be set respectively;

·Driving current rising edge up to 10us Note 1, and no overshoot, no recoil;

·Output pulse working frequency 0-10KHz;

·Output current ripple: ≯ 1%; Current stability: ±0.5%;

·MOPA structure, each current strictly start and stop automatic control;

·Optical power over limit, over current, over temperature and other hardware interlock protection, fast response;

·High speed accurate power adjustment tube thermal management function to ensure the safety of the power tube;

·A variety of remote control;

·Multi-channel laser power PD, temperature, humidity, flow and other real-time detection and control;

·Can set working parameters, interlocking protection value, alarm value, calibration PD, etc., through the upper computer;

·Run time encryption Settings.

·Waterproof and dustproof grade IP55 structure design.

Note1: The line length from the drive output to the laser module cannot exceed 1m.
