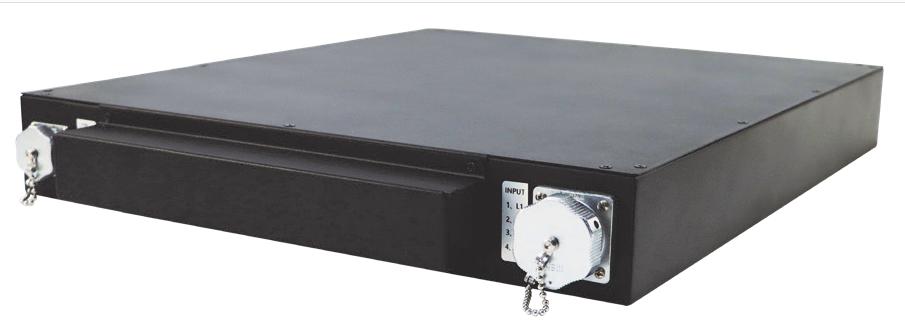

Optical power 6kW continuous fiber laser power module

·Input range: AC342V-456V,50/60Hz.

·4*50A constant current output, each output can be enabled and the output current can be set respectively;

·Driving current rising edge up to 10us Note 1, and no overshoot, no recoil;

·Output pulse working frequency 0-10KHz;

·Output current ripple: ≯ 1%; Current stability: ±0.5%;

·MOPA structure, each current strictly start and stop automatic control;

·Optical power over limit, over current, over temperature and other hardware interlock protection, fast response;

·High speed accurate power adjustment tube thermal management function to ensure the safety of the power tube;

·A variety of remote control;

·Multi-channel laser power PD, temperature, humidity, flow and other real-time detection and control;

·Can set working parameters, interlocking protection value, alarm value, calibration PD, etc., through the upper computer;

·Run time encryption Settings.

·Waterproof and dustproof grade IP55 structure design.

Note1: The line length from the drive output to the laser module cannot exceed 1m.
