Active Q-Switch Medical Beauty Laser Power Supply — Stable Output Is The Core Strength Of Laser Equipment

Manufacturers developing Q-switched spot removal, tattoo removal and 755nm skin rejuvenation complete machines often struggle with these common power supply pain points: Unstable energy output causing inconsistent treatment performance across finished devices; frequent Q-switch timing failures leading to lamp burnout; ordinary industrial power supplies failing medical device registration standards; scattered internal wiring slowing mass assembly efficiency...

The root cause lies in the lack of dedicated active Q-switch power supplies for medical beauty use. LZY QAM Series Nd:YAG active Q-switch power supplies are specially developed for pigment laser medical devices, comprehensively solving three major challenges of complete machine stability, regulatory compliance and mass production.

Working Principle of Active Q-Switch

The active Q-switch medical beauty power supply serves as both the power source and timing control core of spot removal & tattoo removal lasers. It consists of two independent modules: a xenon lamp pumping power supply circuit and a dedicated Q-switch drive control circuit. It precisely controls the resonant cavity Q value via electrical signals to generate nanosecond high-peak laser pulses, which differentiates it from passive Q-switch solutions without electronic control and self-triggering.

Core advantage of active Q-switch: The power supply outputs independently controllable electrical signals to manually and accurately switch high/low Q values. Passive Q-switch relies on spontaneous crystal triggering with uncontrollable timing sequences.

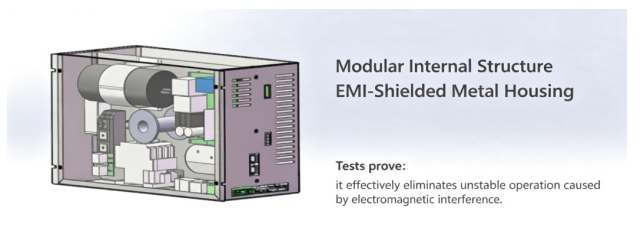

Modular internal structure + EMI-shielded metal housing Tests prove it effectively eliminates unstable operation caused by electromagnetic interference.

Four core parameters

1. Precise Active Q Control For Uniform & Stable Machine Output

As the core power hub of medical equipment, it adopts an isolated potting Q-drive module with high-voltage pulse rising edge as low as 15ns. It supports automatic Q-switch delay scanning, eliminating repeated manual calibration by engineers.

The power supply stores independent voltage and QDelay delay parameters for three wavelengths: 1064nm / 532nm / 755nm. Under a 100μF capacitor configuration, the single-channel model delivers a maximum single-pulse energy of 45J, while the dual-channel model reaches up to 90J. The repetition frequency is continuously adjustable from 1Hz to 10Hz with highly consistent pulse energy output. This ensures uniform treatment performance of finished devices and reduces inconsistent feedback from end customers.

2. Single/Dual-Channel Dual Specifications, Compatible With All Categories Of Medical Beauty Lasers

Fully modular integrated design, integrating main control board, energy storage capacitor, output switch and pre-ionization circuit internally.

· Single-channel 1000W active Q-switch power supply: Dimensions 340148230mm, weight 3.5KG, suitable for desktop small spot & eyebrow removal machines

· Dual-channel 1000W active Q-switch power supply: Dimensions 380148260mm, weight 4.8KG, high-power model for vertical all-in-one salon equipment

3. Compliant With Medical Safety Standards, Smooth Medical Device Registration

The full product line is designed in strict accordance with YY0505-2012 and IEC60601-1-2 medical electrical equipment standards, with leakage current lower than 0.4mA. It supports wide AC input of 220V±15%, adapting to clinic power grids nationwide.

Multi-layer electrical protection: Output short-circuit protection, automatic over-temperature alarm at 50°C, water shortage & water flow monitoring, pre-ionization fault identification. Equipped with 50A high-current pluggable terminals to avoid loose wiring, overheating and potential equipment fire hazards.

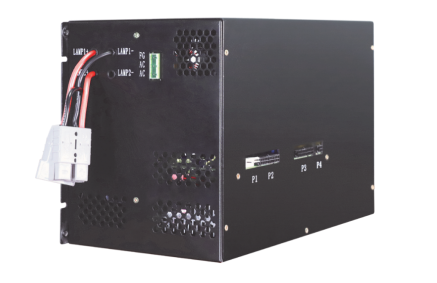

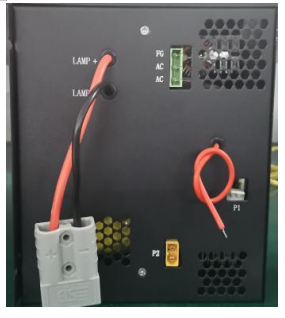

Handle Output Definition

· LAMP﹢: Positive pole connected via 4mm² red high-voltage cable to 50A high-current connector

· LAMP﹣: Negative pole connected via 4mm² black high-voltage cable to 50A high-current connector

AC Input Definition

· FG: Ground terminal

· AC: Live wire & neutral wire of AC power input

4. Intelligent Integrated Design Shortens Mass Production Cycle Greatly

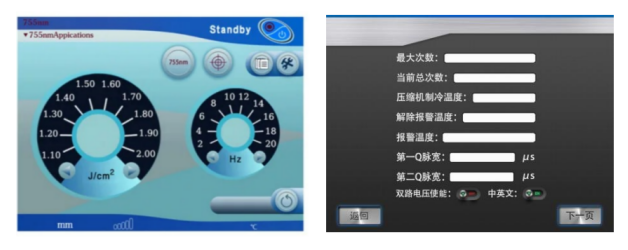

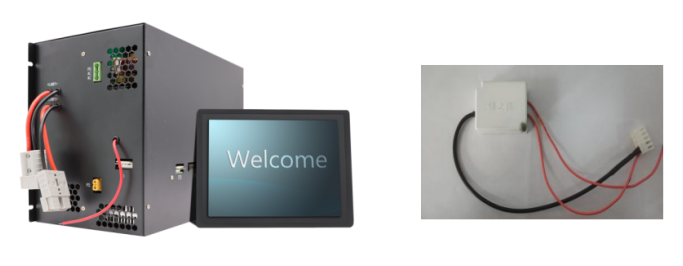

Standardized integrated terminals P1-P5: Water cooling interlock, water flow sensor, foot switch, safety lock, wavelength switching and red aiming light are all plug-and-play without extra adapter boards. Supports 8/10-inch LCD touch screens with one-click plug-in connection via P3 port; main interface visualizes adjustment of energy, frequency and spot size. Built-in WIFI wireless communication enables online parameter upgrade and remote fault diagnosis, eliminating the need to return defective equipment to factory. Forced air cooling system supports continuous operation from -15℃ to 45℃; no overheating shutdown even after 8-hour non-stop work in summer.

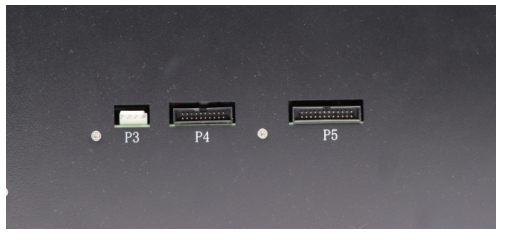

· Terminal P3: Dedicated screen connection port with 1m signal cable for external 8/10-inch LCD screens

· Terminals P4/P5: General control ports integrating water flow, foot switch, safety lock, wavelength indicator and all other signal functions

Customer Testimonial

Person in Charge of a Medical Beauty Complete Machine Manufacturer "We have switched power suppliers three times before — previous products either suffered severe energy fluctuation or lacked complete supporting documents to pass medical device inspections. LZY’s active Q-switch power supply can be assembled directly upon receipt. All mass-produced machines deliver consistent performance, and after-sales failures caused by power supplies from end clients have dropped sharply."

LZY Supporting Services

1. 12-month full unit warranty with free repair for non-human damage

2. Free provision of complete wiring diagrams, installation dimension drawings and background parameter tuning manuals

3. Customizable OEM parameters and modified interfaces to fit new multi-functional Q-switched all-in-one lasers

4. One-on-one remote technical tuning support

Closing Text

Developing and mass-producing Nd:YAG Q-switched medical beauty lasers and in need of stable, compliant active Q-switch power supply solutions? Choose LZY Active Q-Switch Medical Beauty Power Supply. Compliant with medical electrical standards, stable and reliable output performance, easy assembly for mass production. R&D and OEM manufacturers of medical laser machines are welcome to request samples!
