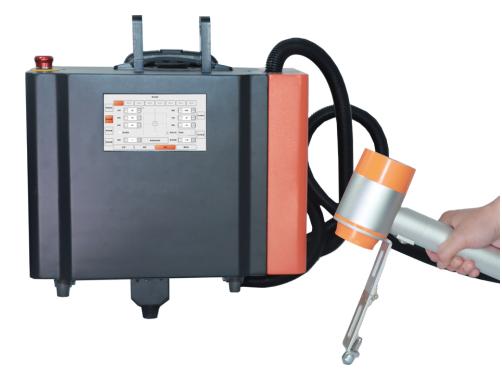

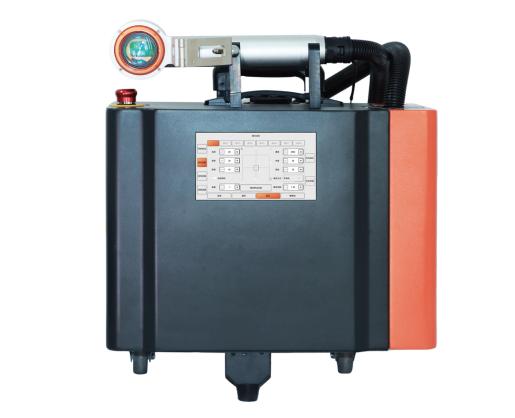

Pulsed-rod laser cleaning machine (air-cooled)

1. The pull rod design is more maneuverable, the whole machine only weighs about 25kg, occupies a small area, and is easy to move and transport.

2. Efficient, non-destructive cleaning, for rust, oil, coating, oxidation and other cleaning effect is more significant.

3. High cleaning efficiency, save time, no consumables, more safe and environmental protection.

4.LCD touch screen, easy to operate, five minutes to get started, system stability.

5.Supports 8 scanning modes, can choose a variety of cleaning shapes, suitable for a variety of materials.

6. Precise cleaning, with auxiliary focusing device, used to fix the focal length during cleaning, to avoid inaccurate control of the focal length and slow cleaning efficiency.

7. Ultra-long life, laser operation up to 100,000 hours.

Contact Now

Product Details

Equipment characteristics

The pull rod design is more maneuverable, the whole machine only weighs about 25kg, occupies a small area, and is easy to move and transport.

Efficient, non-destructive cleaning, for rust, oil, coating, oxidation and other cleaning effect is more significant.

High cleaning efficiency, save time, no consumables, more safe and environmental protection.

LCD touch screen, easy to operate, five minutes to get started, system stability.

Supports 8 scanning modes, can choose a variety of cleaning shapes, suitable for a variety of materials.

Precise cleaning, with auxiliary focusing device, used to fix the focal length during cleaning, to avoid inaccurate control of the focal length and slow cleaning efficiency.

Ultra-long life, laser operation up to 100,000 hours.

Pulsed-rod laser cleaning machine (air-cooled)
Lasertype	Pulse
Laser power	200W/300W/500W
Laser wavelength	1060-1080nm
Maximum pulse energy	1.2mJ/1.5mJ
Cooling mode	Air cooling
Pulse width	20-500(Adjust)
Frequency regulation range	1-3000(Adjust)
Output armor length	3m/5m(Customizable)
Scanningrange	0-100mm(Adjust)(Dual axis supports 8scanning modes)
Field mirror focal length	254(160mm/300mm/420mm)
Powersupply mode	Plug in
Voltage range	AC110/220V 50/60HZ
Operating temperature	5℃~40℃
Working ambient humidity	≤80%
Maximum power consumption	≤800W

Application industry

It is widely used in mold manufacturing, automobile manufacturing, electronics industry, construction industry, aerospace, furniture industry, military equipment and other fields, and the application market has broad prospects.
