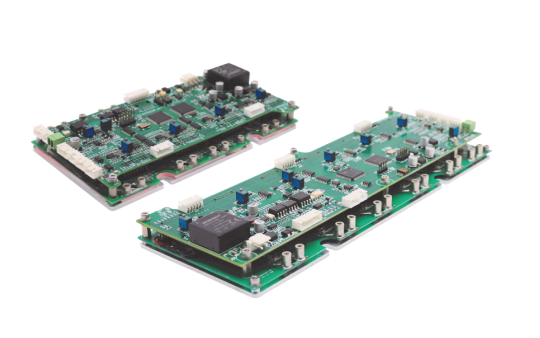

Four/six fiber laser linear constant current module

Product Features

·6-channel & 4-channel *30A independent constant current output, each output current software is adjustable and enabled respectively0;

·Can be extended to 25*6=150&25*4=100 constant current output through the main control board, the synchronization error of each channel does not

exceed 1uS when switching;

·Output voltage 20-180V adaptive (the maximum constant current decreases with the increase of output voltage);

·Power up to 2KW;

·Output current rising and falling edge is less than 10us; No overshoot, no recoil;

·Output current ripple less than ±0.2%; Current comprehensive adjustment rate is less than ±0.5%;

·Can set working parameters, interlocking protection value, alarm value, calibration PD, etc. It can record running time, store 24 groups of running

parameters for direct call, store fault record analysis and upload;

·With special main control board, can achieve a variety of control modes, local control, remote RS485 control, remote analog control;

·Over temperature, over current hardware, software interlocking protection, PD hardware interlocking protection to ensure the safety of the rear laser;

·Input voltage detection, undervoltage, overvoltage alarm;

·High speed accurate power adjustment tube thermal management function to ensure the safety of the power tube;

·Multi-channel laser power PD, temperature, humidity, flow switch and other real-time detection and control;

·Comes with indication of optical drive and control.
